If you’ve ever stared at a fridge in a showroom and wondered how deep designers go when creating a 20 cu ft top freezer chassis, you’re not alone. Crafting a spacious yet compact refrigerator-freezer combo involves balancing interior storage, exterior dimensions, insulation, and user comfort. In this post, we’ll walk through the key principles behind these designs so you can better understand why your top freezer has that specific height, width, and depth.
By the end, you’ll have a clearer idea of how each component fits together, how manufacturers optimize space, and what you might want to look for if you’re considering a 20 cu ft top freezer for your home, office, or even your business break room.
Understand the core structure
A 20 cu ft top freezer refrigerator typically arranges its capacity across two compartments: an upper freezer and a lower fresh-food section. The first step in designing this type of appliance is to determine how large each section will be. Generally, the freezer compartment accounts for roughly one-quarter of the total volume, while the fridge area takes the remaining three-quarters.
To hit that 20 cu ft mark:
- Designers measure the interior in cubic feet, which factors in height, width, and depth.
- The freezer portion might be about 5 cu ft, and the fridge area around 15 cu ft, though exact ratios vary.
- Engineers account for door thickness, insulation layers, and shelving space when calculating those interior measurements.
Because a top freezer chassis is designed for everyday use, manufacturers focus on making the fridge section more spacious. You might grab items from the fridge more routinely than the freezer, especially if you prepare fresh meals every day.
Consider standard exterior dimensions
A 20 cu ft top freezer typically has exterior measurements that fit through standard doorways and hallways. Most units range from about 28 to 34 inches deep (with the door and handles included), 29 to 33 inches wide, and 65 to 70 inches high. These variations allow different models to accommodate different kitchen layouts or cabinet configurations. If you have an especially tight space or a built-in design, you might check out which slim refrigerator mounts flush beside tall pantry? if you need narrower models.
Depth matters
The depth of the fridge is a crucial measurement because it affects how much it sticks out into your kitchen. Some homeowners prefer a counter-depth style, which typically lines up with countertop edges and results in a more streamlined look. However, these models may reduce the interior volume slightly compared to full-depth units.
For top freezer units, you’ll often see a deeper chassis that can hold large platters, pizza boxes, or those big holiday leftovers. The design challenge is to keep that depth in check so it doesn’t become a tripping hazard or block walkway space.
Plan the freezer compartment
The top freezer is usually dedicated to long-term storage of frozen foods, ice cubes, and the occasional bag of frozen fruit for your morning smoothie. Because the freezer is up top, it’s easier to integrate the evaporator coil and cooling lines there. This arrangement simplifies the design but also requires careful planning to ensure the freezer isn’t too cramped.
Freezer size and shape
- A typical 20 cu ft top freezer might have around 5 cu ft of freezer space.
- Shelves or wire racks help stack frozen goods.
- Some models feature adjustable or removable shelves to accommodate tall or oddly shaped items.
Position of the evaporator
For frost-free models, the evaporator coil is housed behind a rear freezer panel. The coil pulls heat out of the freezer to maintain sub-freezing temperatures. Since it takes up a bit of room, designers must tuck it away neatly so you don’t lose precious storage space.
Maximize fridge storage

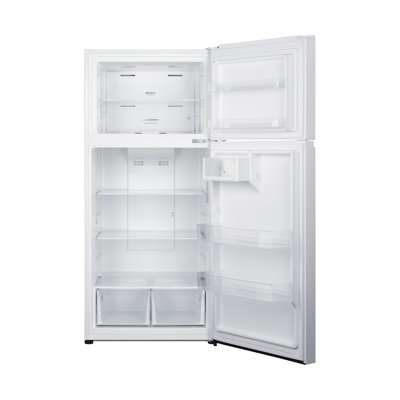

Because the bottom fridge section will likely store your everyday essentials, designers aim to provide enough shelving and door bins for produce, dairy, sauces, and beverages.
Shelving layout
You’ll notice that top freezer fridges typically include two or three main shelves in the fridge area. These might be constructed of tempered glass or wire. A well-designed shelf layout helps you:
- Adjust height for taller items (think pitchers or milk jugs).
- Slide out shelves for easy access to leftovers.
- Better organize produce and packaged goods.
Door storage considerations
Manufacturers often place adjustable door bins for condiments, small bottles, and sometimes even gallon-size containers. Those bins can shift up or down to fit water bottles or large containers of creamer. If you’re someone who loves stocking specialty sauces, pay attention to how flexible that door storage is.
Focus on insulation and energy efficiency
Insulation keeps the cold air inside, so it’s a critical aspect of how engineers design a 20 cu ft top freezer chassis. Thicker insulation increases energy efficiency and helps maintain consistent temperature, but it also reduces the usable interior space.
Balancing thickness
Finding the sweet spot between insulation thickness and interior capacity is a top priority in fridge design. Squeeze in too much insulation and you lose valuable cubic footage. Not enough insulation, and your fridge might fail to maintain the correct temperatures or rack up a higher electricity bill.
Energy ratings
These days, most top freezer fridges come with an energy rating label. The rating is based on how many kilowatt-hours (kWh) the appliance consumes per year. A well-insulated 20 cu ft model can run more efficiently, saving you money in the long run. For additional tips on picking a fridge that meets your lifestyle goals, check out best refrigerator for 16/8 fasting diet if you like to keep fresh items handy for your mealtime windows.
Integrate user-friendly features
Designers know that your fridge isn’t just about keeping things cold, it’s also about convenience. For a 20 cu ft top freezer model, some popular features include spill-proof shelves, humidity-controlled crispers, and reversible doors.
Spill-proof shelves
Spill-proof shelves are often made of rimmed glass to help contain accidental spills. If you knock over last night’s leftover soup, the rim prevents it from dripping all over the shelves below. It’s a small touch that can save you a big cleanup headache.
Humidity-controlled crispers
Many of these models feature crispers (drawers dedicated to fruits and veggies) with adjustable humidity sliders. High humidity helps leafy greens stay crisp, while low humidity works better for certain fruits. If you’re worried about mold on berries, you might find yourself looking for advanced crisper designs, like what crisper tech blocks berry mold effectively?.
Reversible doors
A reversible door design is especially handy if you need flexibility when placing your fridge in a corner or tight space. By switching the door swing from left to right, you can adapt the fridge to your kitchen layout without needing a custom unit.
Choose interior finishing materials
Most 20 cu ft top freezer models feature a mix of plastic, steel, or glass for the interior. Each material contributes to ease of cleaning, temperature retention, and aesthetics.
- Plastic liners tend to be lightweight and easy to wipe down.
- Glass shelving looks sleek and helps contain spills.
- Stainless-steel accents are sometimes added for a premium feel and added durability.
Aesthetics aside, designers make these material choices to reinforce the structure and sustain temperature consistency. The surfaces must handle daily wear and tear, especially if you’re opening and closing the door for every snack or mealtime prep.
Step up to modern features
While basic top freezer fridges have been around for decades, modern versions sometimes incorporate digital controls, temperature sensors, and even LED lighting.
LED lighting
LEDs emit less heat and last longer than traditional bulbs. They’re also more energy-efficient, meaning the fridge’s interior stays cooler while saving on electricity. Plus, LED lights make it easier to see what’s hiding in the back of your fridge.
Temperature sensors
Many 20 cu ft models include built-in temperature sensors that alert you if the door is left open or if the interior gets too warm. This could be especially useful if you have children rummaging in the freezer for popsicles or if you’re juggling groceries and forget to close that fridge door properly.
Think about handling and transport
If you plan to move your fridge at some point, you’ll want to think about its design features that make transportation easier.
Side-clearance design
Some units are engineered to allow enough clearance for cords and connections to run smoothly, preventing damage during a tight squeeze through hallways. Always refer to the manual before you tilt a fridge on its side. If you’re curious about typical transport do’s and don’ts, you might check a handy guide like will i damage my fridge if i transport it on its side?.
Weight distribution
Engineers pay attention to weight distribution so the fridge remains stable. Most 20 cu ft top freezers have leveling feet that can be adjusted to prevent wobbling. It’s a small detail, but it matters for a stable, safe installation once you get it inside your home.
Evaluate maintenance and cleaning
Designers also account for how easy it is to clean condenser coils and other parts of the fridge. Over time, dust collects on the coils, which can lower efficiency and strain the compressor.
Access to condenser coils
Some models have coils on the back, others locate them underneath. If you ever wonder about coil cleaning basics, here’s a quick read on how do you clean the condenser coils on the back of a refrigerator?. In either case, the fridge’s design should allow you to easily access these coils with a vacuum or coil brush.
Removable door seals
Many fridges have removable and replaceable door gaskets that help seal out warm air. If that seal gets cracked or worn out, you can swap it without calling in a professional. Proper door seals are key to keeping your 20 cu ft fridge working efficiently.
Factor in special-use cases
Not every top freezer fridge is used strictly in a standard kitchen. Some might be placed in break rooms, small restaurants, or even in basement bars. Designers consider these diverse settings when creating a 20 cu ft chassis, making sure it’s robust enough for heavier, more frequent use.
Beverage zones
If you like having a separate beverage area within your top freezer fridge, check out specialized compartments or door bins that hold cans or tall bottles. For an entirely separate beverage solution, you might look at best beverage fridge for a small kitchen if you’re short on space or want dedicated cooling for drinks.
Specialty diets
If you follow specific diets or meal plans, the fridge layout might matter more. A top freezer with ample produce storage can be a lifesaver if you’re storing fresh fruits and veggies. For instance, if you’re exploring different ways to organize a fridge for healthy meal prep, you might be curious about other guides like fridge.com: low fat diet meaning and recipes.
Use a measuring table for clarity
To get a better sense of typical measurements, here’s a simple example of approximate ranges for a 20 cu ft top freezer chassis. Remember, each brand’s model may differ slightly, but these numbers can guide you when you’re shopping or planning your kitchen layout.
| Feature | Approximate Range |
|---|---|
| Overall Width | 29–33 inches |
| Overall Height | 65–70 inches |
| Overall Depth (with door) | 28–34 inches |
| Freezer Capacity | ~4.5–5.5 cu ft |
| Fridge Capacity | ~14.5–15.5 cu ft |
| Insulation Thickness | ~1–2 inches |
This table is a starting point. Always double check your specific model’s specs for a precise fit.
Look for design improvements
Every year, manufacturers release new versions of their top freezer models with innovations that improve capacity, energy efficiency, or convenience.
- Inverter compressors: These can adapt their speed for optimal cooling, improving energy savings and reducing noise.
- Dual cooling systems: Rare in simple top freezer models, but some fridges now feature separate cooling loops for the fridge and freezer. If that intrigues you, you might explore which beverage fridge runs dual independent cooling circuits?.
- Smart connectivity: Select models offer app integration, so you can control the temperature or get alerts if the door is left open.
Avoid common pitfalls
While top freezer designs are known for reliability, you’ll want to check for a few issues that might arise:
- Door clearance: If your kitchen has a tight corner, make sure the door can swing freely.
- Proper leveling: If the fridge isn’t level, doors might not seal well, causing higher energy bills.
- Temperature fluctuations: Avoid overstuffing the freezer. Proper air circulation ensures even cooling.
- Neglecting coil cleaning: Dusty coils can lead to overheating or reduced efficiency.
Taking care of these small details helps your top freezer fridge function better for years to come.
Summarize key insights
When it comes to designing a 20 cu ft top freezer, manufacturers juggle multiple factors: overall dimensions, interior volume, insulation, cooling systems, and convenient user features. That’s how they arrive at a design that precisely meets storage requirements, temperature stability, and everyday usability. You benefit from a balanced fridge that won’t hog all your kitchen space but still offers enough room to stash groceries for a family or an office crowd.
Final tips for your next fridge
If you’re in the market for a 20 cu ft top freezer, consider:
- Measuring your kitchen entryways and fridge nook to ensure a comfortable fit.
- Deciding on features like door style, special shelving, or humidity-controlled crispers.
- Prioritizing energy efficiency, since a fridge runs continuously and can significantly impact your utility bill.
- Checking user reviews for real-world feedback on noise levels, longevity, or service experiences.
- Thinking about whether you might add supplementary appliances, such as a beverage cooler or a flush-mount fridge for a separate area.
Now that you know the basics of how deep designers go to create that perfect 20 cu ft top freezer chassis, you can shop with confidence or just impress your friends with fridge-design trivia. Want even more fridge insights? Feel free to explore our other guides, like best counter depth refrigerator guide if you’d prefer a sleek, countertop-aligned look, or how to determine the value of a used fridge if you’re thinking about swapping out your old unit.
Have a question about an upcoming kitchen remodel or a specific fridge model? Let me know in the comments. I’d love to hear about your experiences and help you find the right design for your home.
